Channels: 2
Speaker: 16 cm (6.5 inches) Woofer x 1, 2.5 cm (1 inch) Dome Tweeter x 1
Output wattage: 60 W (Woofer: 50 W, Tweeter: 10 W)

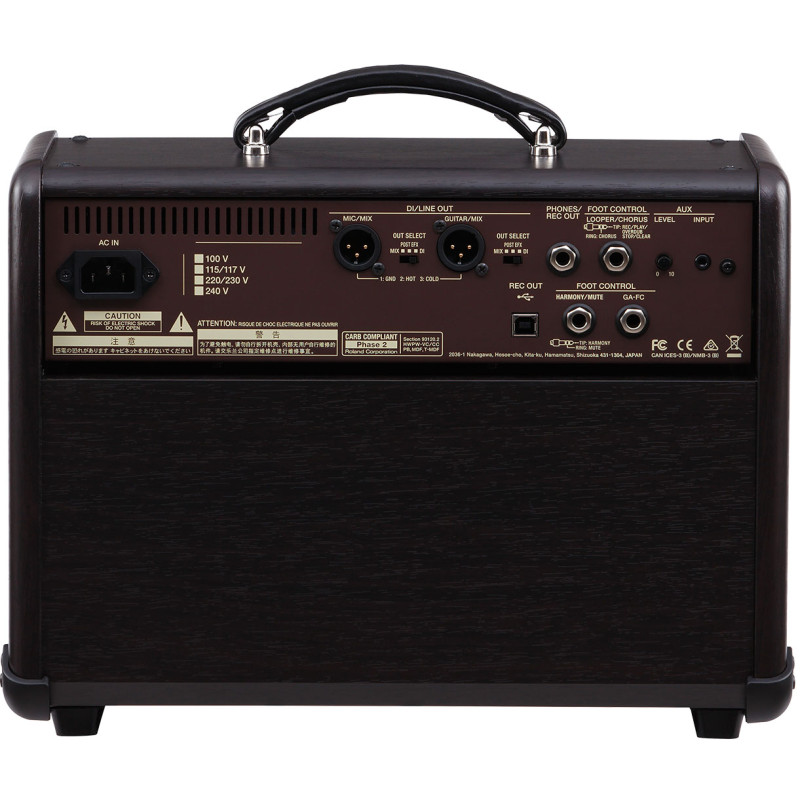

Inputs: MIC jack: Combo type (XLR, 1/4-inch TRS phone type)
GUITAR jack: 1/4-inch phone type
AUX IN jack: Stereo miniature phone type
FOOT CONTROL LOOPER/CHORUS jack: 1/4-inch TRS phone type
FOOT CONTROL HARMONY/MUTE jack: 1/4-inch TRS phone type
GA-FC jack: 1/4-inch TRS phone type
Outputs: PHONES/REC OUT jack: Stereo 1/4-inch phone type
DI/LINE OUT MIC/MIX jack: XLR type
DI/LINE OUT GUITAR/MIX jack: XLR type

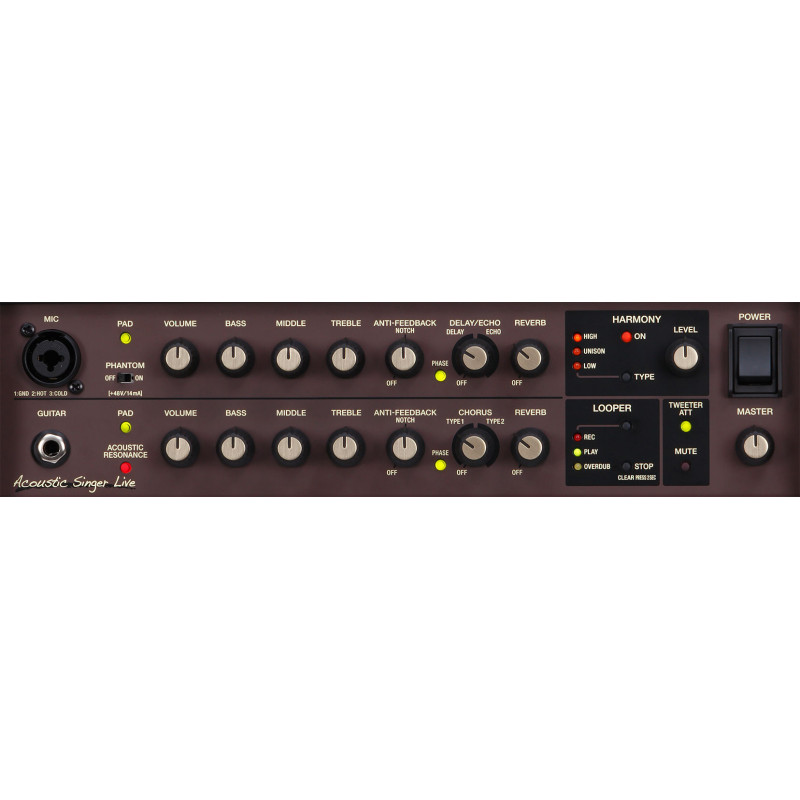

Controls: POWER switch
MASTER knob
TWEETER ATT button
MUTE button
[MIC]
PAD button
PHANTOM switch
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
DELAY/ECHO knob
REVERB knob
[GUITAR]
PAD button
ACOUSTIC RESONANCE button
VOLUME knob
BASS knob
MIDDLE knob
TREBLE knob
ANTI-FEEDBACK knob
PHASE button
CHORUS knob
REVERB knob
[HARMONY]
ON button
TYPE button
LEVEL knob
[LOOPER]
LOOPER button
STOP/CLEAR button
[AUX]
LEVEL knob
[DI/LINE OUT]
MIC/MIX: OUT SELECT switch
GUITAR/MIX: OUT SELECT
Effects: DELAY/ECHO; REVERB; CHORUS; HARMONY; LOOPER
Power supply: 220v
Weight: 10,5 kg
