Keyboard: 76-key Velocity sensitive Hammer Action Portable keyboard with Aftertouch. Range: E-G
Piano section:
- 2 GB memory for Piano sounds
- All sounds can be replaced using Nord Sound Manager (Mac/Win)
- 120 Voice Polyphony
- Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
- 4 Selectable Velocity Curves
- Dedicated Piano filters
- Clavinet EQ controls
- String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
- Selectable Soft Piano Release
- Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
- Layer (Slot) Detune functionality
- 2-Part Multitimbral
Synth section:
- Nord Lead A1 Synth Engine with Sample Playback
- Dedicated OLED Display for Oscillator section
- 480 MB Memory for Nord Sample Library 3.0
- All samples can be replaced using Nord Sound Manager (Mac/Win)
- 34 Voice polyphony
- Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
- Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
*=Not available for Sample/Superwave - Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
- Filter Drive: Off, 1, 2 and 3
- Filter Tracking: Off, 1/3, 2/3 and Full
- 3 Unison modes
- Amplitude envelope (Attack, Decay, Sustain) with Velocity control
- Modulation envelope (Attack, Decay, Sustain) with Velocity control
- LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
- 400 (8x50) Synth Preset locations with Synth Preset categories
- Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
- LFO and Arpeggiator synchronizable to Master Clock
- 2-Part Multitimbral
Organ section:
- Nord C2D B3 Tone wheel Organ simulation
- Vox Continental and Farfisa models
- 2 Digital Pipe Organ models
- 9 digitally controlled Drawbars
- Physical Drawbars (Compact model only)
- Drawbar Live mode (Compact model only)
- Percussion controls
- Vibrato / Chorus control
- Two Drawbar Presets per Slot
- 2-Part Multitimbral (2 manuals)
Effects:
- Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
- Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
- Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
- 3 types of Speaker simulations, JC, Twin and Small
- Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
- Tube amp simulation with adjustable overdrive
- 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
- Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
- Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
- Effect rates/tempo can be synchronized to the Master Clock
- Compressor with Fast Mode
- Reverb - 6 algorithms with Bright Mode

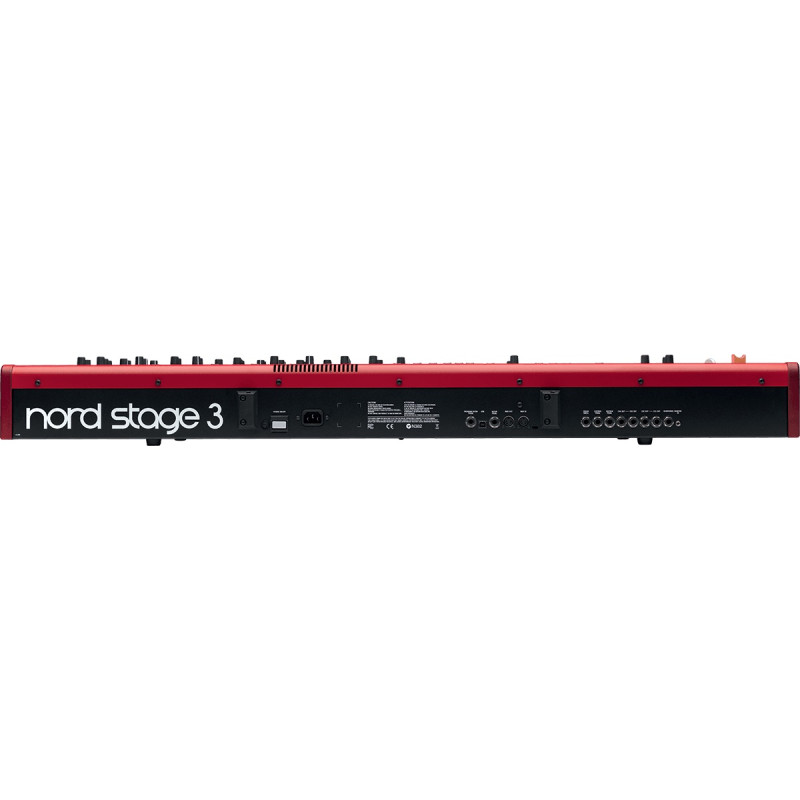

Connections:
- 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
- Stereo Headphone output - ¼", 6,35 mm stereo jack
- 1 Monitor input - 1/8", 3,5 mm stereo jack
- Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
- Sustain input compatible with Nord Triple Pedal (sold separately)
- Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
- Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
- Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
- Program Change Pedal input - ¼", 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
- MIDI In - 5 pin DIN connectors
- MIDI Out - 5 pin DIN connectors
- USB - type B connector for USB MIDI, Software Update and Sound Transfer
- Power Cord with IEC C14 connector
Dimensions: 1122 mm (44"), 127 mm (5"), 347 mm (13,6")
Weight: 12,5 kg
