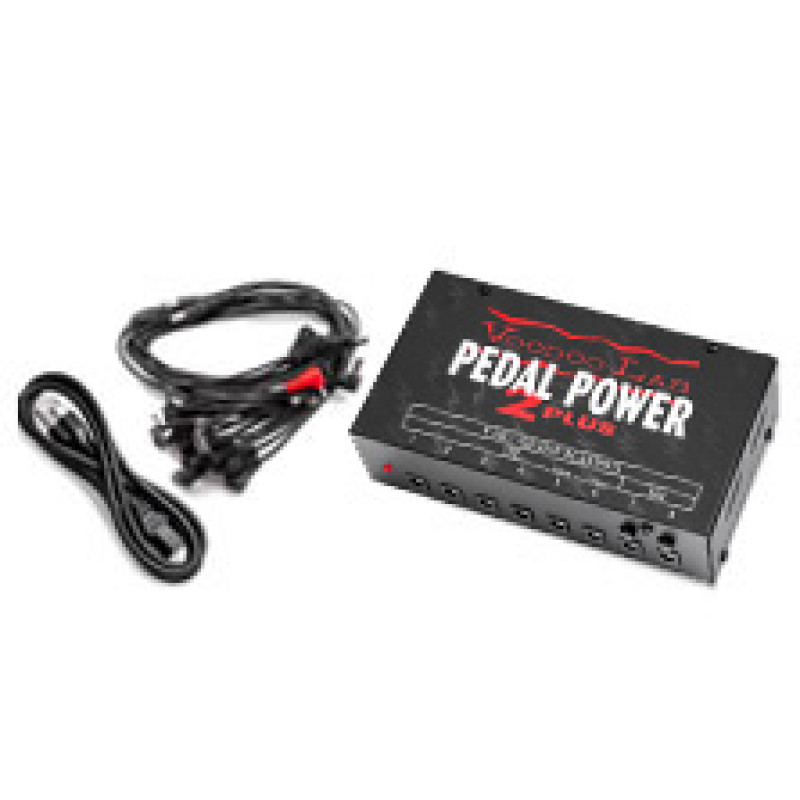

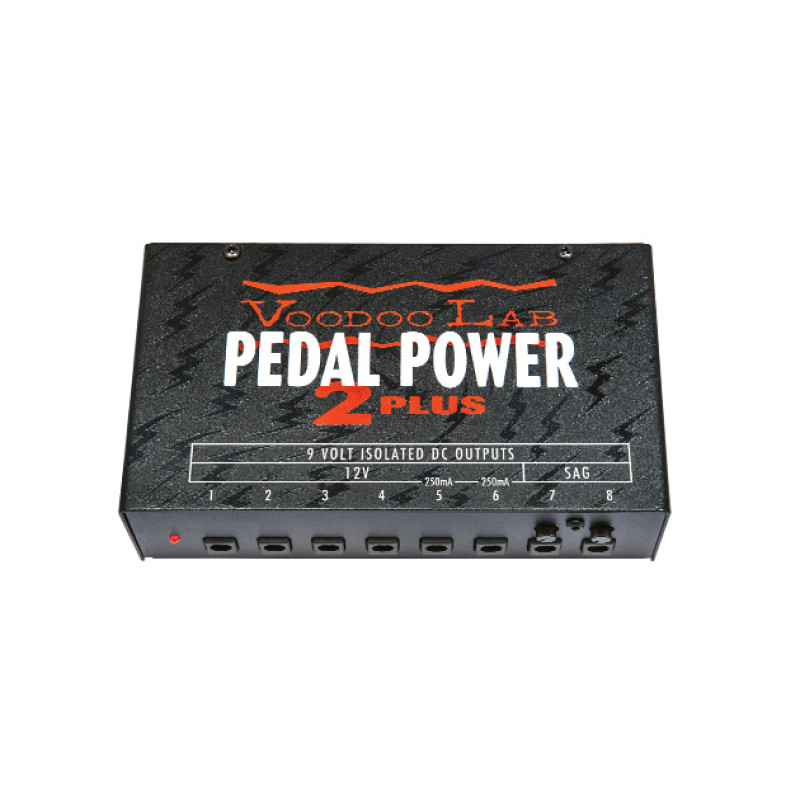

Type: Universal 9V/12V Pedalboard Power Supply 8 Outputs; Center negative barrels 2.1 x 5.5 mm

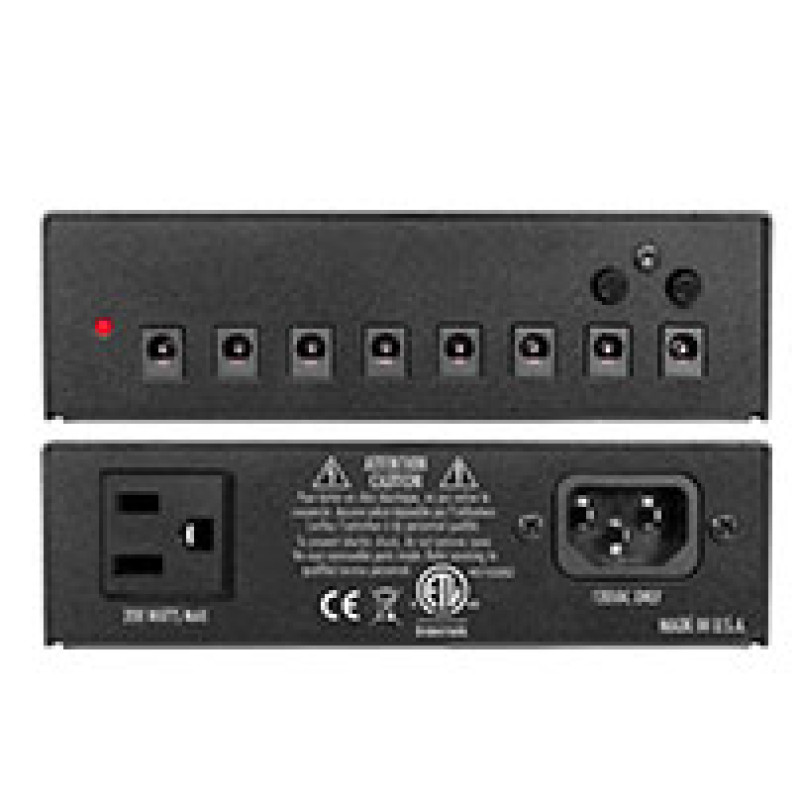

Inputs: IEC connector 220V
Outputs: 8 isolated DC outputs
Outputs 1-4: 9 or 12 V DC (switchable individually). 100 mA/output (60 mA in 12 V setting)
Outputs 5-6: 9 or 14.5/12 V DC. 250mA/output. (14.5 V 50 mA, 12 V 200 mA)
Controls: 8 dip swiches
2 voltage knobs
Dimensions: 152 x 86 x 44 mm
Special notes: Pedals that use 18 V/24 V voltages can be powered by combining 2 outputs with custom cables
Included: 6 x 5.5/2.1 mm DC cable w. angled connectors center negative
2 x 5.5/2.1 mm DC cable w. straight connectors, center negative
1 x 5.5/2.5 mm red cable for Line6 pedals (for example DL4)
1 x 3.5 mm mini plug for vintage MXR and Electro-Harmonix pedals
1 x 9 V battery clip
