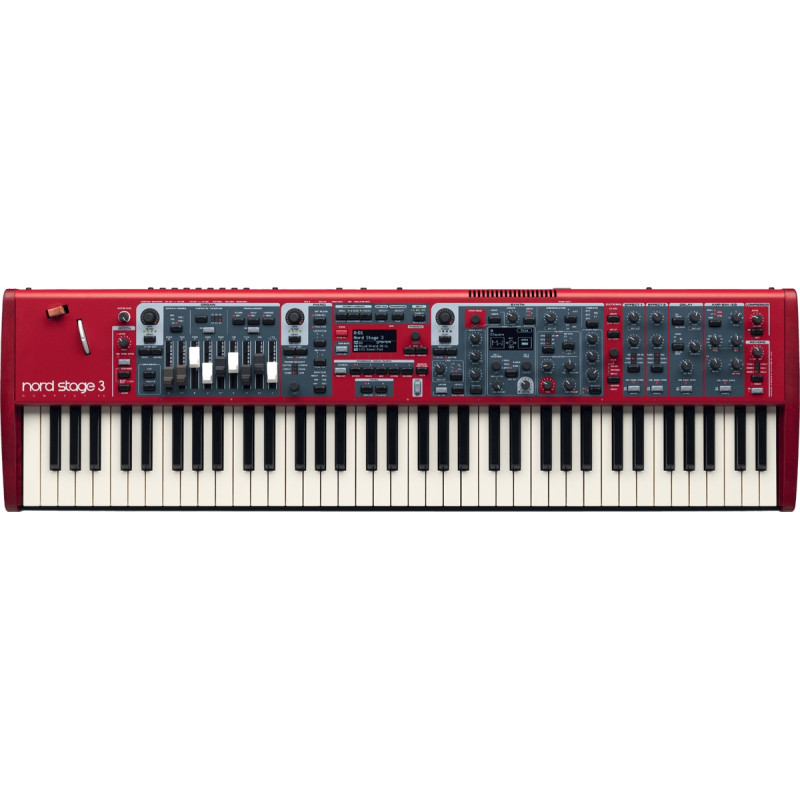

Nord Stage 3 COMPACT

Taustiņi: 73-key Velocity sensitive Semi Weighted Waterfall keyboard with Aftertouch. Range: E-E

Piano sadaļa:

• 2 GB memory for Piano sounds
• All sounds can be replaced using Nord Sound Manager (Mac/Win)
• 120 Voice Polyphony
• Categories: Grand, Upright, Electric, Digital, Layer and Clav/Harpsichord
• 4 Selectable Velocity Curves
• Dedicated Piano filters
• Clavinet EQ controls
• String Resonance (Generation 2) on acoustic Grand Pianos and Uprights
• Selectable Soft Piano Release
• Pedal Noise when used with Nord Triple Pedal (optional accessory) on selected acoustic and electric pianos
• Layer (Slot) Detune functionality
• 2-Part Multitimbral

Sintezatora sadaļa:

• Nord Lead A1 Synth Engine with Sample Playback
• Dedicated OLED Display for Oscillator section
• 480 MB Memory for Nord Sample Library 3.0
• All samples can be replaced using Nord Sound Manager (Mac/Win)
• 34 Voice polyphony
• Oscillator Types: Classic, Wavetable (Wave), Formant, Super Wave (S-Wave) and Sample
• Oscillator Configurations: Pitch, Detune*, Shape*, Sync*, Sine, Triangle, Square, Saw, Bell and Noise Mix, FM* and Ring Mod
  *=Not available for Sample/Superwave
• Classic Transistor Ladder Filter (LP M), 12 & 24 dB Low Pass, High Pass, Band Pass and combined Low Pass/Band Pass (LP+BP) filter
• Filter Drive: Off, 1, 2 and 3
• Filter Tracking: Off, 1/3, 2/3 and Full
• 3 Unison modes
• Amplitude envelope (Attack, Decay, Sustain) with Velocity control
• Modulation envelope (Attack, Decay, Sustain) with Velocity control
• LFO with 5 waveforms/modes: Square, Triangle, Ramp Dn, Ramp Up and Sample & Hold
• 400 (8x50) Synth Preset locations with Synth Preset categories
• Arpeggiator (Up, Down, Up-Down and Random). Range: 1, 2, 3 or 4 octaves.
• LFO and Arpeggiator synchronizable to Master Clock
• 2-Part Multitimbral

Ērģeļu sadaļa:

• Nord C2D B3 Tone wheel Organ simulation
• Vox Continental and Farfisa models
• 2 Digital Pipe Organ models
• 9 digitally controlled Drawbars
• Physical Drawbars (Compact model only)
• Drawbar Live mode (Compact model only)
• Percussion controls
• Vibrato / Chorus control
• Two Drawbar Presets per Slot
• 2-Part Multitimbral (2 manuals)

Efekti:

• Effect 1: Ring Modulator, Tremolo, Auto Pan, Wah-Wah, AutoWah 1, Autowah 2
• Effect 2: Flanger, Vibe, 2 Phasers, 2 Choruses
• Delay with Tempo, Feedback and Mix (Dry/Wet) controls, Ping Pong (stereo taps), Tap-Tempo, Feedback Filter (HP/LP/BP) and panel selectable Analog mode.
• 3 types of Speaker simulations, JC, Twin and Small
• Filter Mode (HP24/LP24) with Cut-off, Resonance and Mix controls
• Tube amp simulation with adjustable overdrive
• 3-band Equalizer with sweepable mid. EQ ranges: 100 Hz, 200 Hz - 8 kHz and 4 kHz
• Rotary Speaker: selectable speed (Stop, Slow and Fast) and separate overdrive
• Extended Morphable Parameters - (Filter Resonance, Reverb Dry/Wet, Delay Feedback, Amp Drive)
• Effect rates/tempo can be synchronized to the Master Clock
• Compressor with Fast Mode
• Reverb - 6 algorithms with Bright Mode

Konektori:

• 4 Assignable Audio Outputs - ¼", 6,35 mm jacks, unbalanced
• Stereo Headphone output - ¼", 6,35 mm stereo jack
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Use a momentary pedal, like e.g, Roland DP-2, DP-6, Yamaha FC-4, FC-5, Fatar VFP1-25 etc.
• Sustain input compatible with Nord Triple Pedal (sold separately)
• Rotor Pedal - ¼", 6,35 mm jack. Use a momentary pedal or a switch type pedal
• Organ Swell Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• Control Pedal - ¼", 6,35 mm TRS stereo jack. Use a Control/Expression pedal like e.g. Yamaha FC-7, Roland EV-5 etc.
• Program Change Pedal input - ¼", 6,35 mm jack. Use a momentary two-button pedal like e.g. Boss FS-6, Boss FS-7 etc.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

Izmēri: 1070 mm (42"), 104 mm (4"), 302 mm (12")

Svars: 10 kg
